Mechanical power and form accuracy optimization of polyamide FFF elements utilizing gray relational evaluation

Experiments’ information have been investigated one after the other by evaluation of variance (ANOVA) and Sign-to-noise ratio (S/N). MINITAB® 19.0 was used to research the entire information. Taguchi methodology is used to analyze the impact of numerous parameters on a sure response with a fewer variety of experiments.

Multi-response optimization

The GRA methodology was concurrently used to optimize multi-response parameters, a statistical methodology. This methodology concurrently reduces the cylindricity and circularity and will increase the power, elongation, and younger’s modulus by calculating the optimum course of parameters. GRA is utilized within the following steps.

Normalization of experimental information

Step one is to normalize the experimental information. Based on the anticipated high quality traits of various responses, this worth will be divided into three standards for optimization in GRA: “larger-is-better,” “smaller-is-better,” and “normal-is-better” are proven in Eqs. (1, 2 and three) 36.










the place X* (p) is the GRG worth, i exhibits the variety of trials, Xi(p) represents the response worth of the goal experiment, Max(Xi(p)) is the utmost worth of Xi(p), Min(Xi(p)) demonstrates the minimal worth of Xi(p) and OB is the goal worth. On this research, the “smaller-is-better” is chosen to normalize the cylindricity and circularity, and “larger-is-better” is chosen for power, Younger’s modulus, and deformation the normalized values are proven in Desk 5.

Desk 5 Normalized values.

Deviation sequence

The subsequent step is to calculate the deviation sequence from Eq. (4).

$${Delta }_{oi} left(pright)=|| {X}_{0}left(pright)-{X}_{i}left(pright) ||$$


the place oi (p) represents the deviation sequence and X0(p) is the reference sequence which is the same as one. Values of deviation sequence for every response are given in Desk 636.

Desk 6 Deviation sequence of GRA.

Gray relational coefficients

The connection between ultimate and actual regular experimental outcomes is expressed by the Grey Relational Coefficient (GRC). The Gray relationship coefficient is calculated utilizing Eq. (5)36 for every of the normalized values.

$${X}^{*}left(pright)=1-frac{{Delta }_{min}+{zeta .Delta }_{max}}{{Delta }_{oi}left(pright)+{zeta .Delta }_{max}}$$


the place ζi (p) is Grey Relation Coefficient, oi (p) represents the deviation sequence, ζ is the identification coefficient and has a worth between 0 and 1; this coefficient is normally thought-about 0.5. Additionally, ∆min and max are minimal and most values of oi (p), respectively. The values are given in Desk 7.

Desk 7 Gray relation coefficient.

Grey relational grade

Generally, the Grey Relational Grade (GRG) is used to guage the multi-response properties. Then again, GRG is the common sum of the GRC, and Eq. (6) is used to find out it36.

$${gamma }_{i}=frac{1}{n}sum_{i=1}^{n}zeta left(pright)$$


the place n is the variety of prosses parameters. Because of this, a bigger GRG implies that the method parameter mixture is nearer to the best. After that, all experimental experiments have been ranked primarily based on GRG values from 1 to 9, the best GRG worth representing the Optimum run, and it’s thought-about 1st rank. So, the eighth check, which has the best GRG worth, so the eighth experiment has the most effective traits among the many different trials.

Evaluation of GRG information

Evaluation utilizing ANOVA and S/N ratio

Sign-to-noise (S/N) ratio is used to optimize course of parameters and look at every parameter’s impression on response. Within the S/N ratio, the “sign” signifies the specified impact, whereas the “noise” signifies the undesirable impact for the responses. Due to this fact, if the S/N ratio is increased, it signifies the optimum circumstances. Based on the anticipated high quality traits of various responses, there are several types of S/N ratios, together with larger-is-better, smaller-is-better, and normal-is-better. The place η represents the S/N ratio, yi represents the response worth of the goal experiment within the orthogonal array, yn exhibits the variance, and n is the variety of experiments


$$eta =-10,mathrm{ log}left[frac{1}{n}sum_{i=1}^{n}frac{1}{{y}_{i}^{2}}right]$$



$$eta =-10,mathrm{ log}left[frac{1}{n}sum_{i=1}^{n}{y}_{i}^{2}right]$$



$$eta =-10,mathrm{ log}left[frac{1}{n}sum_{i=1}^{n}{left({y}_{i}-{y}_{n}right)}^{2}right]$$


Evaluation of variance (ANOVA) and signal-to-noise ratio (S/N) have been used to research the info obtained from GRG utilizing MINITAB®19.0. To look at the impact of every parameter on GRG, the Taguchi approach was utilized. Because of the increased the GRG worth, the specified responses enhance, so “larger-is-better” was used to maximise the GRG to optimize the method parameters. The S/N ratios and response desk of means for GRG are proven in Tables 8 and 9, respectively. These tables present the importance of parameters by using rank, and delta represents the distinction between the best and lowest common. Based on the outcomes, it may be stated that the print pace and printing temperature have probably the most important impression in comparison with the chamber temperature and layer thickness on GRG.

Desk 8 Response desk for sign to noise ratios of GRG.
Desk 9 Response desk for technique of GRG.

The S/N diagram was used to research the info and decide optimum parameters utilizing common S/N ratios for responses. As minimization of the output, parameters are required for geometrical accuracy (cylindricity and circularity), the “smaller-is-better,” and to maximization of the output parameters are required for mechanical properties (Younger’s modulus, deformation, and power), the “bigger is healthier” was chosen to maximise mathematical expression for the S/N ratio. The perfect situation is proven by the best level within the S/N ratio graphic. A B, C, and D characterize the chamber temperature, 3D Printing temperature, layer thickness, and print pace in Figs. 9 and 10, respectively. The assorted ranges for every parameter are represented on the horizontal axis, and the vertical axis is the imply S/N ratio. Based on the Principal Results Plot for S/N ratio (Fig. 7) and Principal Results Plot for imply diagrams (Fig. 8), it may be seen that chamber temperature is 60 °C, printing temperature 270 °C, layer thickness 0.1 mm, and print pace 600 mm/min is the optimum mixture of processes parameters for reaching the utmost GRG.

Determine 7
figure 7

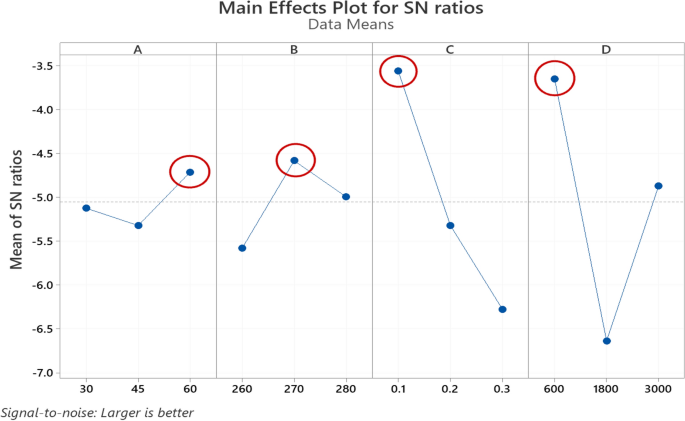

Principal Results Plot for S/N ratios GRG.

Determine 8
figure 8

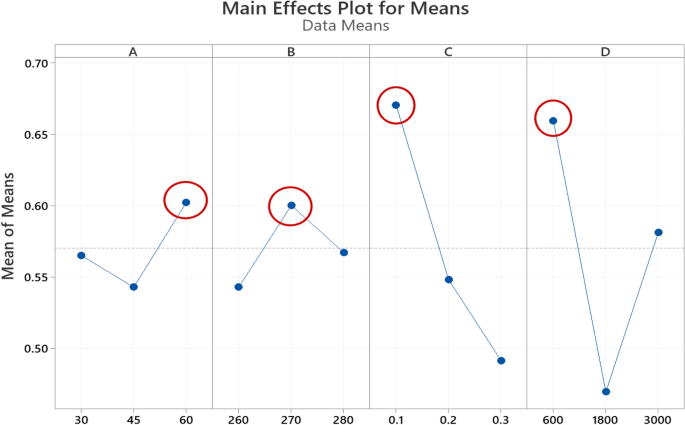

Principal Results Plot for means GRG.

The impression of every course of parameter on the response variables was decided utilizing the ANOVA method. The outcomes of ANOVA are proven in Desk 10. The adjusted sum of squares (Adj SS) was calculated utilizing Eq. (10).

$${s}_{T}=sum_{i=1}^{n}{left({eta }_{i}-{eta }_{j}proper)}^{2}$$


the place ηi characterize the imply S/N ratio, ηj is the general imply S/N ratio, and n exhibits the whole variety of experiments. DF stands for the diploma of freedom, and Contribution is Share of contribution of course of parameters, the adjusted imply sum of squares is Adj MS, whereas the variance of the group means and the likelihood worth is F-Worth and P-Worth, respectively. By investigating the F-value talked about in Desk 10 and contemplating that the upper the worth, the better the impact of the associated parameter, it was decided that print pace, layer thickness, Chamber temperature, and Printing temperature have probably the most important impact on the quantity of GRG respectively. Contribution Percentages additionally confirms these outcomes.

Desk 10 Response of variable parameters of GRG.

Determine 9, exhibits the interplay between course of parameters and GRG values. In an interplay plot, parallel traces suggest no interplay. So in response to the determine, in all different diagrams besides pace, there are not any parallel development traces and the instructions are combined. Because of this sturdy proof that the linear regression mannequin is ineffective for GRG predictions, the response floor methodology’s linear-interaction mannequin is used. Utilizing a linear-interaction mannequin of RSM, a multi-objective perform for GRG was constructed and nominal phrases have been faraway from the equation37,38.

Determine 9
figure 9

Interplay plots for GRG.

Regression modeling of GRG

Response floor regression examines the correlation between variables, which determines the connection between GRG and course of parameters. Additionally, the most effective responses will be achieved by discovering the most effective correlation between elements and the most effective ranges of parameters linear-interaction mannequin of the response floor methodology is used. The regression mannequin is proven in Eq. (11).

$$GRG=3.38+0.1082A-0.01211 B-28.76C-0.000098D-0.00033A*B-0.071A*C+0.1141B*C$$


The chamber temperature, printing temperature, layer thickness, and print pace are represented by A, B, C, and D, respectively. The correlation coefficient, usually generally known as R-squared, is a statistical device that represents the proportion of variation in a dependent variable and ranges from 0 to 100%. MINITAB 19.0® software program calculates the R-squared worth, and the worth of this coefficient is 99.20 %, which signifies a excessive correlation.

Figures 10 and 11 confer with floor diagrams and contour diagrams, respectively, that are graphical photographs of the regression equation. They present the interactions between two totally different course of parameters on GRG and are made by MINITAB 19.0 software program. As will be seen from these graphs, the best worth of GRG is obtained on the lowest values of layer thickness and print pace and the best values of chamber temperature. Additionally, as is noticed in Fig. 12, by Evaluating the GRG values obtained by the experiments and the GRGs calculated by the regression equation, it’s decided that the utmost error charge is 3%, indicating that the mannequin is validated.

Determine 10
figure 10

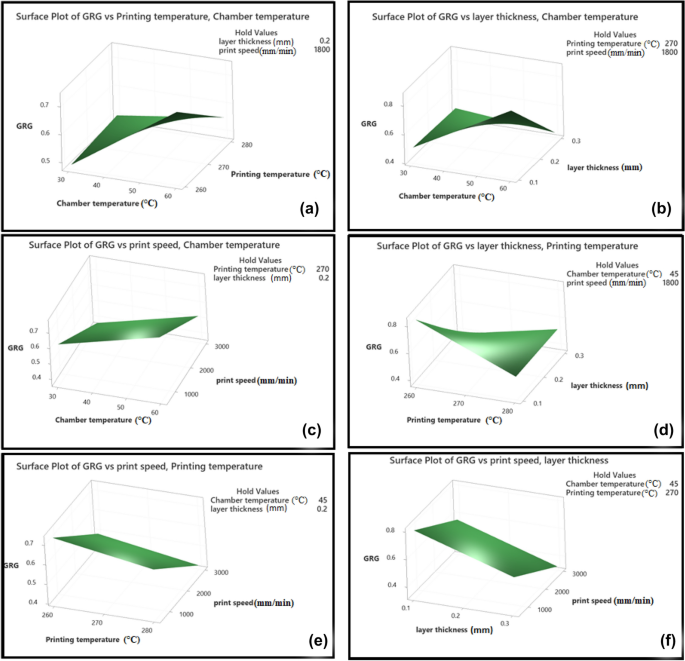

GRG Floor plots. (a) chamber temperature and printing temperature, (b) chamber temperature and layer thickness, (c) chamber temperature and print pace, (d) printing temperature and layer thickness, (e) printing temperature and print pace, (f) layer thickness and print pace, on GRG.

Determine 11
figure 11

GRG contour plots. The impact of; (a) chamber temperature and printing temperature, (b) chamber temperature and layer thickness, (c) chamber temperature and print pace, (d) printing temperature and layer thickness, (e) printing temperature and print pace, (f) layer thickness and print pace, on GRG.

Determine 12
figure 12

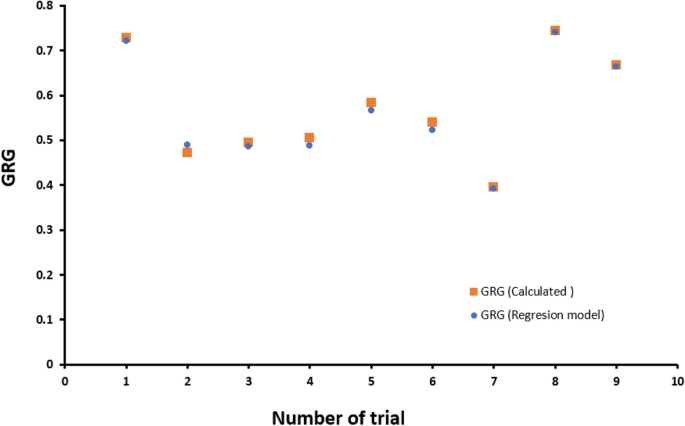

Comparability of GRG values obtained from regression mannequin and obtained from experimental.

Within the final step, a affirmation experiment was carried out utilizing optimum ranges of course of parameters (Chamber temperature 60 °C, Printing temperature 270 °C, layer thickness 0.1 mm, and print pace 600 mm/min) to confirm this parameter obtained from the GRA and likewise to guage the advance in responses. To make sure repeatability of the outcomes, 5 hole cylindrical elements with optimum parameters have been fabricated by the FFF 3D printer. And the expected Gray relational grade worth or Ypredicted is in comparison with the imply worth of the gray relational grade obtained from the affirmation check. Equation (12) is used to calculate the expected GRG worth for optimum parameters.



$$Error left({%}proper)=left[frac{{GRG}_{Predicted}-{GRG}_{Experimental}}{{GRG}_{Experimental}}right]*100$$


$$Improvment left(mathrm{%}proper)=left[{GRG}_{Experimental}-{GRG}_{Intitial}right]*100$$


the place ym represents the whole imply of the GRG, yi refers back to the common GRG on the optimum degree, and n is the variety of chosen course of parameters. Then a compression check was utilized to the elements to guage the power, younger’s modulus, and elongation of PA6 elements. Additionally, for measuring geometrical error values comparable to cylindricity and circularity, 3D printed elements have been scanned utilizing Solutionix D500, and the measured worth is proven in Desk 11. Additionally, the stress-strain curve of optimum parameters and the eighth trial, which has probably the most GRG, are in contrast in Fig. 13e. Because it seems, the mechanical properties comparable to younger’s modulus and power of the printed half have been improved underneath optimum circumstances. Then, utilizing the values of the obtained responses, the GRG worth for the 3D printed piece with optimum parameters was measured utilizing Eqs. (1), (2), (4), (5), and (6). After calculating the experimental GRG, the following step is to calculate the share error between the expected GRG and the experimental GRG. Then the advance in GRG is evaluated. All of the measured values of GRG are proven in Desk 12, and by evaluating the preliminary GRG and the GRG obtained from the experiment and utilizing Eq. (13), it was discovered that the optimum GRG worth has improved by 14%. So, the outcomes present that the values of the optimum parameters obtained from the GRA methodology have improved all of the meant responses. Additionally, by evaluating the expected GRG and the GRG of the experiment (Eq. 14), it was discovered that the error charge is the same as 5%. Due to this fact, contemplating this quantity of error, it may be stated that there’s a good correlation between these values.

Desk 11 Measured values of responses.
Determine 13
figure 13

Scanning Electron Microscopy (SEM) photographs of the samples manufactured by FFF in (a,b) eighth, (c,d) and optimum situation, respectively. (e) Stress pressure curve of preliminary GRG (eighth) and the GRG obtained from the experiment.

Desk 12 Measured values of responses.

Determine 13a–d exhibits the SEM commentary of the samples manufactured in eighth and optimum circumstances. Extra voids and delamination will be seen within the eighth (preliminary situation) pattern in comparison with the optimum situation 3D printed half. Given the distinction in printing pace for fabrication of those elements, the distinction in print high quality will be attributed to this parameter. One of many vital parameters affected by altering the printing pace is thermal gradient39. So, the impact of thermal gradient on delamination between the layers has been emphasised. By growing the nozzle pace cooling charge can be elevated40. So optimum half which printed at a decrease pace can be underneath a decrease thermal gradient than the eighth. So, extra delamination in eighth is justified. Moreover, the weld interface between filaments performs an important function in ultimate mechanical properties41. As proven within the Fig. 13 weld interface on this determine, it has not been finished effectively contemplating the presence of some delamination. Few mechanical properties have been anticipated by lowering the weld interface between the 2 filaments. The compression check outcomes present a lower within the compressive power of eighth printed half in comparison with the optimum half. Moreover, the geometric accuracy is much less resulting from extra delamination within the eighth printed half in comparison with the situation 3D printed half42.

The outcomes of this analysis allow the designer to provide high-quality elements. Within the following, the outcomes of this analysis and the optimum choice parameters, and its comparability with different articles expressed within the literature part are mentioned. It was discovered that at 270 °C, the quantity of GRG was optimum. The optimum 3D printing temperature relies on the kind of materials used, and many others., however at low temperatures, the printed layer is nearly strong. The decreased binding power between the layers can be lowered if the brand new layer is deposited. The adhesion can be very poor, so it causes decrease mechanical properties and dimensional accuracy. Then again, if the temperature is excessive, the fluidity is just too excessive, and as a result of gravity power, the soundness of the geometry decreases. It was discovered that the 60 °C chamber temperature, which was the best worth thought-about on this research, is the optimum GRG degree. It’s because the excessive chamber temperature is just not too excessive to have an effect on geometric stability. Within the talked about analysis within the literature, it was noticed that the best temperature adopted the most effective dimensional accuracy in PLA elements with growing temperature of 3D printing. One other research on PEEK elements had comparable outcomes to the present work. This may be resulting from totally different supplies used and totally different temperature ranges16,17. Additionally, in a research, the impact of chamber temperature on the power of PEAK elements was investigated. Comparable outcomes have been noticed19. Based on the optimization outcomes, it was discovered that the quantity of GRG at low speeds is increased. As a result of at excessive speeds, the printed layers wouldn’t have sufficient time to solidify. The next layers are deposited on the earlier layers, and the piece turns into deformed inside a short while interval. Different PEEK and PC/ABS mix elements analysis indicated that increased printing pace values enhanced and optimized pressure, power, and stiffness. The distinction in outcomes could be resulting from limitations within the cylinder design, the kind of materials utilized, and the responses chosen17,19. The impact of layer thickness as some of the vital parameters in enhancing elements’ mechanical properties and accuracy was investigated. It was discovered that the quantity of GRG is increased at decrease layer thickness. A thicker layer thickness ends in increased temperature gradients between the layers, which results in extra deformation. Additionally, because the variety of deposited layers will increase, extra interfaces seem, and adhesion reduces. Nevertheless, as indicated within the literature, totally different outcomes and comparable outcomes have been noticed in articles with totally different supplies. And the explanation will be the distinction within the desired responses and the distinction within the chosen materials. One more reason could possibly be different chosen parameters as a result of all parameters have an effect on one another15,16,19,21.
